StrokeFusion: Vector Sketch Generation via Joint Stroke-UDF Encoding and Latent Sequence Diffusion

Jin Zhou, Yi Zhou, Hongliang Yang, Pengfei Xu*, Hui Huang
CSSE, Shenzhen University
AAAI 2026
Paper (arXiv) Code

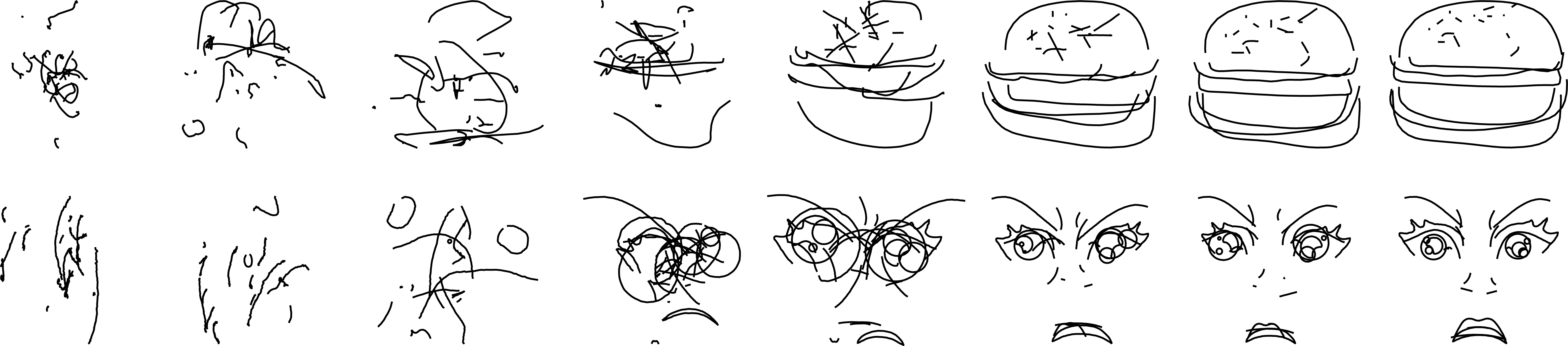

StrokeFusion Generation Process

Figure 1: Two examples of the generation process in StrokeFusion. From left to right, the noise level progressively decreases. At each timestep, only strokes with presence confidence $\hat{v}_i > 0$ are visualized.

Abstract

In the field of sketch generation, raster-format-trained models often produce non-stroke artifacts, while vector-format-trained models typically lack a holistic understanding of sketches, resulting in compromised recognizability. Moreover, existing methods struggle to extract common features from similar elements (e.g., animal eyes) that appear at varying positions across sketches. To address these challenges, we propose StrokeFusion, a two-stage framework for vector sketch generation. It contains a dual-modal sketch feature learning network that maps strokes into a high-quality latent space. This network decomposes sketches into normalized strokes and jointly encodes stroke sequences with Unsigned Distance Function (UDF) maps, representing sketches as sets of stroke feature vectors. Building upon this representation, our framework exploits a stroke-level latent diffusion model that simultaneously adjusts stroke position, scale, and trajectory during generation. This enables high-fidelity stroke generation while supporting stroke interpolation editing. Extensive experiments across multiple sketch datasets demonstrate that our framework outperforms state-of-the-art techniques, validating its effectiveness in preserving structural integrity and semantic features.

Overview of StrokeFusion Framework

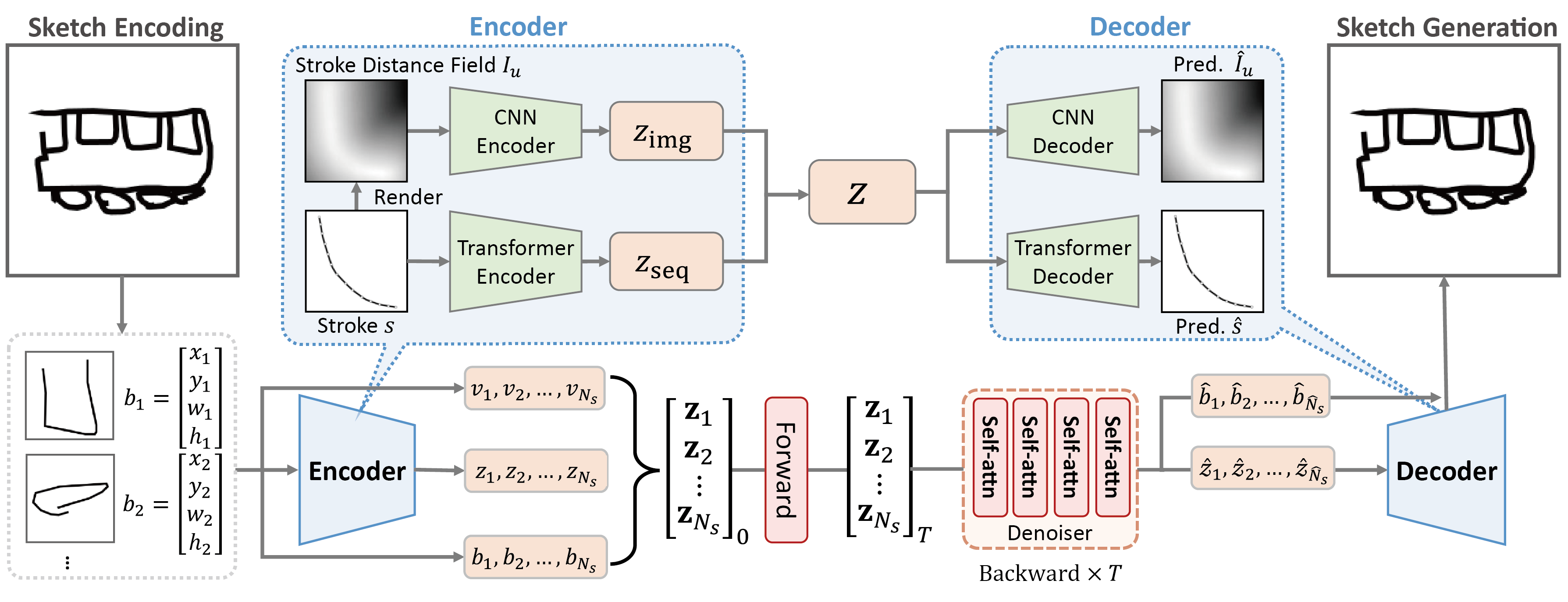

Overview of StrokeFusion pipeline
Figure 2: The proposed StrokeFusion framework comprises two core components:
1) Dual-Modal Stroke Encoding: Each stroke $s$ is processed through parallel encoding paths - a transformer-based sequence encoder handles geometric coordinates while a CNN processes the stroke distance field $I_n$. These modalities are fused into joint features $f$, trained via symmetric decoder networks that reconstruct both the original stroke ($s$) and distance field ($I_n$);
2) Sketch Diffusion Generation: All normalized strokes are encoded into latent vectors $z_i$, augmented with bounding box parameters $b^i = [x^i, y^i, w^i, h^i]$ and presence flags $v^i \in \{-1, 1\}$. The diffusion model learns the distribution of stroke sequences $\{z_1, ..., z_N\}$ through $T$-step denoising training. During generation, the denoiser progressively refines noisy latents via reverse diffusion, with valid strokes ($v^i = 1$) being decoded through inverse normalization of $\hat{b}^i$ to reconstruct the final sketch. The architecture maintains permutation invariance through order-agnostic sequence processing.

Qualitative Comparison on QuickDraw

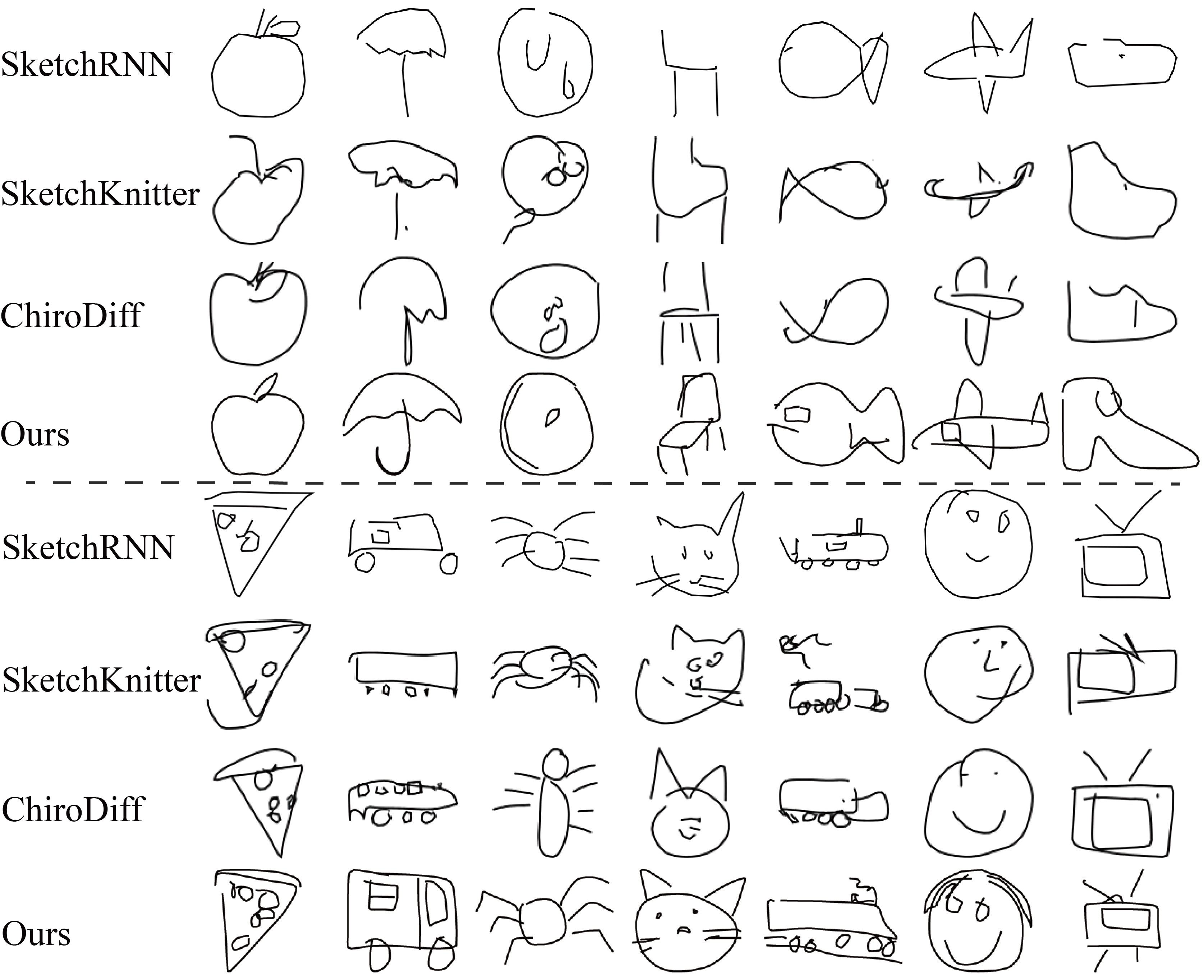

Qualitative comparison on QuickDraw
Figure 3: Qualitative comparison of sketches generated by our method and the baselines across different categories in QuickDraw. Our method consistently produces more structurally coherent sketches with richer local details, particularly in complex, multi-stroke scenarios.

Results on Complex Datasets

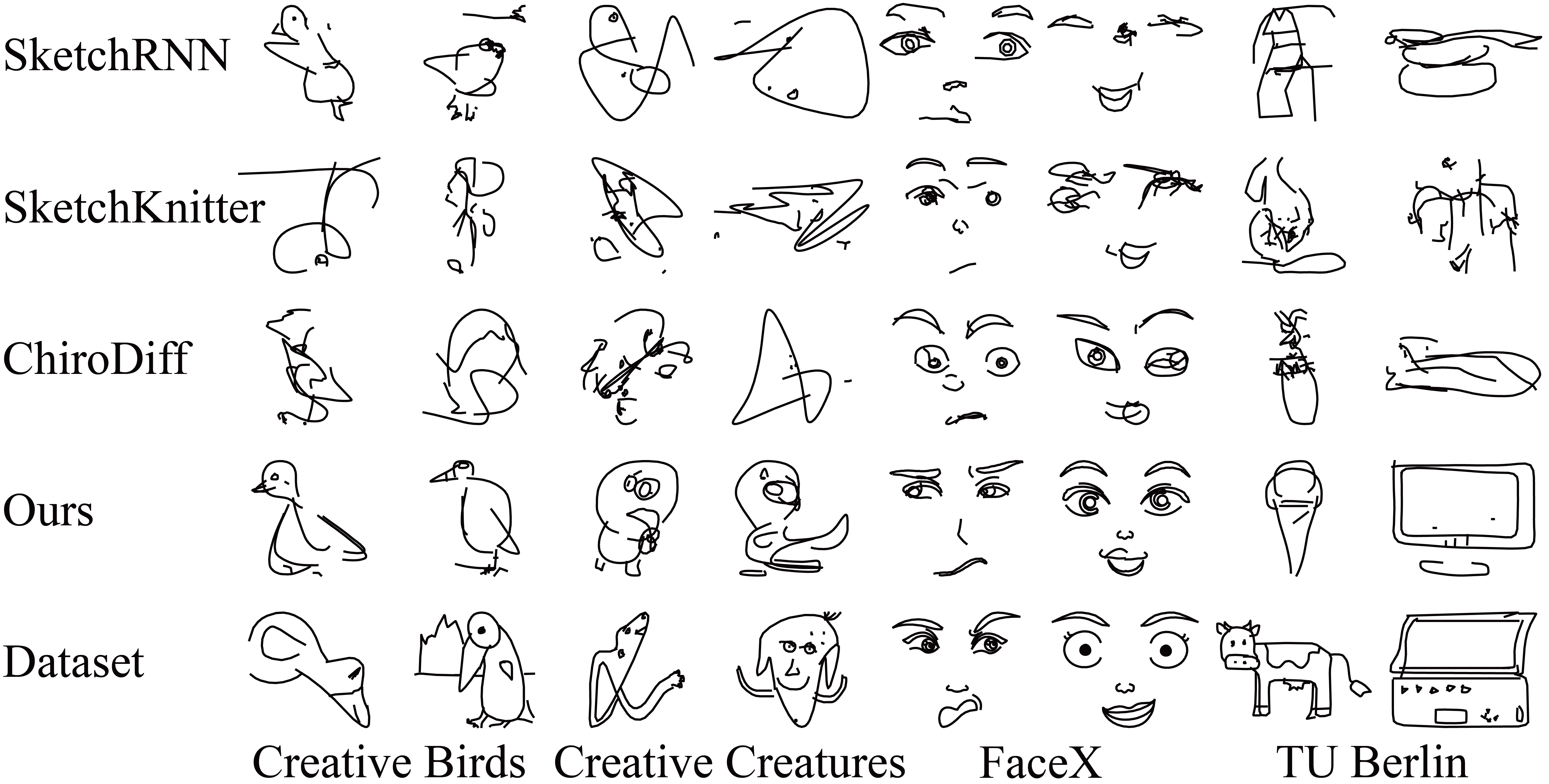

Generation results on complex datasets
Figure 4: Qualitative generation results on several more complex datasets. Dataset names and representative examples are shown below each column for comparison.
Method < 4 strokes < 8 strokes $\geq$ 8 strokes
FID$\downarrow$ Prec$\uparrow$ Rec$\uparrow$ FID$\downarrow$ Prec$\uparrow$ Rec$\uparrow$ FID$\downarrow$ Prec$\uparrow$ Rec$\uparrow$
SketchRNN 31.61 0.49 0.45 36.98 0.58 0.44 40.67 0.55 0.40
SketchKnitter 23.17 0.52 0.48 27.07 0.57 0.45 35.64 0.54 0.40
ChiroDiff 17.17 0.61 0.50 23.84 0.63 0.45 27.78 0.62 0.42
StrokeFusion 19.53 0.71 0.58 18.99 0.69 0.61 17.76 0.71 0.58

Table 1: Performance comparison across different stroke-count categories in QuickDraw. Classes are grouped by average stroke counts: low-stroke (< 4), medium-stroke (< 8), and high-stroke ($\geq$ 8). Bold and underlined values indicate the best and second-best performances, respectively.

Method Creative Birds Creative Creatures FaceX TU Berlin
FID$\downarrow$ Prec$\uparrow$ Rec$\uparrow$ FID$\downarrow$ Prec$\uparrow$ Rec$\uparrow$ FID$\downarrow$ Prec$\uparrow$ Rec$\uparrow$ FID$\downarrow$ Prec$\uparrow$ Rec$\uparrow$
SketchRNN 59.85 0.26 0.28 121.02 0.44 0.26 155.02 0.01 0.31 98.01 0.73 0.20
SketchKnitter 59.16 0.25 0.22 110.46 0.42 0.27 156.97 0.08 0.34 99.46 0.56 0.22
ChiroDiff 60.10 0.56 0.18 36.66 0.59 0.27 99.33 0.06 0.30 98.30 0.53 0.25
Doodleformer 27.32 0.67 0.55 33.46 0.52 0.69 - - - - - -
StrokeFusion 26.19 0.56 0.30 19.41 0.58 0.32 7.27 0.76 0.89 33.68 0.66 0.48

Table 2: Performance comparison on additional datasets. Our method achieves consistently better FID, Precision, and Recall across all datasets. Bold and underlined values indicate the best and second-best performances, respectively.

BibTeX Citation


@inproceedings{zhou2026strokefusion,
  title={StrokeFusion: Vector Sketch Generation via Joint Stroke-UDF Encoding and Latent Sequence Diffusion},
  author={Zhou, Jin and Zhou, Yi and Yang, Hongliang and Xu, Pengfei and Huang, Hui},
  booktitle={Proceedings of the AAAI Conference on Artificial Intelligence},
  year={2026}
}
